Water damage mitigation in asphalt protects pavement from moisture-related deterioration and repairs existing damage. Unlike concrete, asphalt uses bitumen (a petroleum-based binder) that degrades when water seeps into cracks. This process accelerates with freeze-thaw cycles, causing up to 3 inches of base layer erosion annually in severe climates. Prevention focuses on sealing surfaces and redirecting water, while repairs address cracks, potholes, and compromised sublayers.

This article explains how water destroys asphalt and how to stop it. You’ll learn why 95% of potholes start with unsealed cracks. Compare drainage systems like French drains ($15-$30/linear foot) versus catch basins ($1,200-$4,800 each). See how sealcoating every 2-3 years prevents 70% of water intrusion. We detail repair costs, material choices, and eco-friendly options like permeable asphalt paving ($8-$15/sq.ft).

Understanding Water Damage in Asphalt Structures

Water harms asphalt through slow, hidden attacks. Even small cracks let water seep in. Once inside, it weakens layers below the surface. Left unchecked, this leads to costly fixes.

How Water Infiltration Damages Asphalt

Water breaks down asphalt in two main ways. It splits the surface through freeze-thaw stress. It also washes away the base that holds up the pavement. Both paths speed up wear and tear.

The Role of Freeze-Thaw Cycles in Asphalt Deterioration

Water in cracks freezes at 32°F, expanding up to 9%. This push bends the pavement. Thawing leaves gaps. Each cycle widens cracks. In one winter, a hairline crack can grow to 1/2 inch. Potholes form when chunks break loose.

Subsurface Erosion and Base Layer Compromise

Water under asphalt acts like a silent thief. It carries off fine grains from the gravel base. A 1/4-inch base loss cuts pavement life by 3-5 years. Weak bases cause dips, alligator cracks, and sink spots. Fixing base flaws costs 50% more than surface repairs.

To combat these threats, proactive steps in design and care prove vital. The next steps focus on stopping water before it strikes.

Preventive Measures for Asphalt Water Damage

Stopping water infiltration requires proactive strategies. Two core approaches dominate: engineered drainage systems and protective sealants.

Context Pick Flex Seal, 14 oz, Clear, Stop Leaks Instantly, Transparent Waterproof Rubber Spray On Sealant Coating, Perfect for Gutters, Wood, RV, Campers, Roof Repair, Skylights, Windows, and More
N/A View

Effective Drainage Solutions for Asphalt Surfaces

Drainage design determines asphalt lifespan. Poor water redirection leads to seepage, base erosion, and cracks.

Proper Slope Design and Installation

A minimum 2% slope directs runoff away from asphalt surfaces. Roads use crown designs—peaking at the center—to shed water laterally. Parking lots require cross slopes toward drains or perimeter channels. Contractors verify grades with laser levels during paving, ensuring ±0.3-inch accuracy for consistent flow.

Catch Basin Maintenance and Gutter Systems

Clogged basins force water under pavement layers. Clean basins quarterly—remove leaves, sediment, and debris. Install HDPE polymer gutters with 5-10 GPM flow capacity along edges. Pair with French drains filled with ¾-inch crushed stone to handle heavy storms without overflow.

Asphalt Sealcoating Best Practices

Sealcoating acts as a waterproof barrier. It blocks 90% of surface water penetration when applied correctly.

Context Pick SIKA Sikaflex-410 Asphalt Sealant, Black, Self-Leveling Hybrid Sealant for Filling Cracks in Asphalt Driveways, Roadways, and Pavements - 9 fl. oz. Cartridge, Fills Cracks up to 1.5 in. Wide
$10.09 View

Choosing Quality Sealants for Water Resistance

Coal tar emulsions outperform asphalt-based options, resisting hydrostatic pressure up to 15 psi. Look for 35-40% solids content and polymer additives like styrene-butadiene. Avoid diluted products; thick coatings (0.1 inches) last 30% longer than thin layers.

Recommended Application Frequency for Watertight Asphalt

Seal every 2-3 years in moderate climates. High-traffic areas or regions with 40+ inches of annual rainfall need annual recoating. Apply during dry conditions (50-85°F) using spray systems for even coverage. Costs average $0.14-$0.25 per square foot—a fraction of full-depth repair expenses.

Even robust prevention systems can’t block all damage. Next, learn how to restore asphalt integrity once water breaches its defenses.

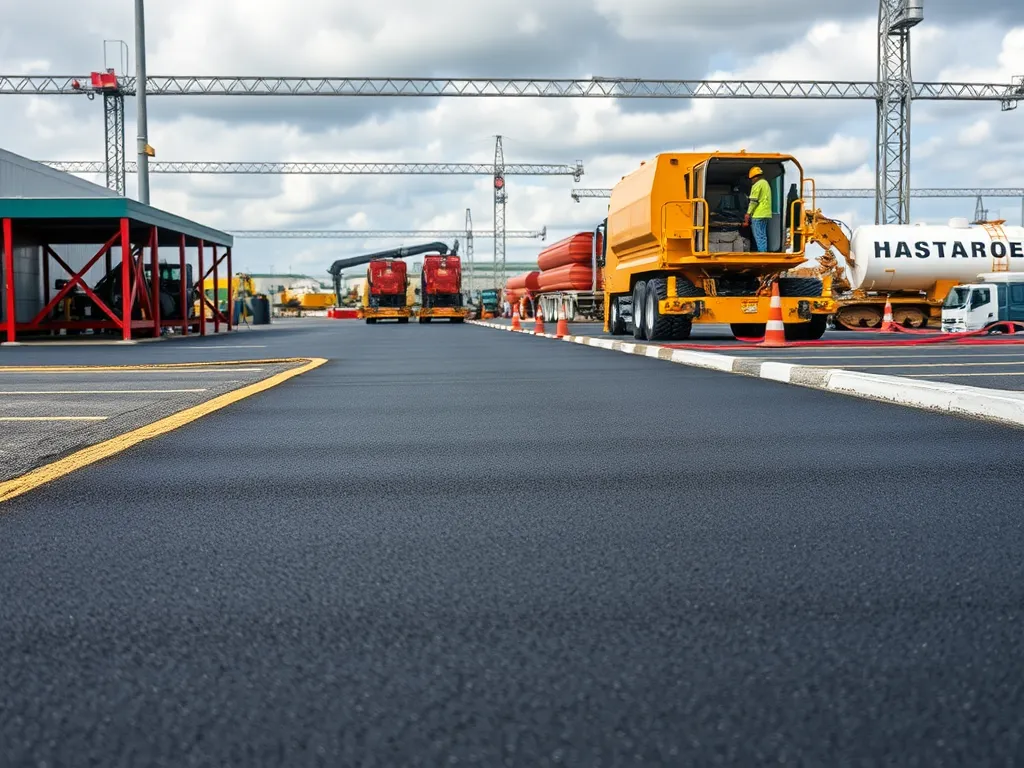

Asphalt surface repair equipment used for water damage mitigation.

Repair Techniques for Water-damaged Asphalt

Fix cracked or worn asphalt fast to stop more harm. Use proven ways to make roads last longer and keep them dry.

Addressing Surface Cracks and Potholes

Small splits and holes let water seep in. Fix them quick to block leaks and guard the base.

Crack Sealing Methods for Asphalt Preservation

Fill splits with hot tar or rubber glue to block water. For gaps wider than 1/4 inch, use a blow torch to clean debris first. Rout out cracks (cut wider channels) for deeper seals. This stops 80% of new leaks when done right.

Cold Patch vs. Hot Mix Asphalt Repairs

  • Cold mix: Needs no heat. Use it for quick fixes in cold or wet days. Costs $2-$5 per bag. Lasts 6-12 months.
  • Hot mix: Needs heat (300°F). Bonds better. Costs $100-$150 per ton. Lasts 5+ years.

Full-depth Repairs and Asphalt Resurfacing

When base layers fail, cut out bad parts. Dig down 6-8 inches. Check subbase. If soaked or soft, swap it out. Lay fresh asphalt and pack with a roller.

When to Replace Subbase Layers for Severe Damage

Swap subbase if you spot soft spots, sink holes, or pools after rain. Use crushed stone or gravel for new base. Pack it tight. Add 2-4 inches of new asphalt on top.

Picking the right fix affects both cost and how long it lasts.

Also See: How to Choose the Right Asphalt Paver for Your Project

Cost Considerations for Asphalt Water Mitigation

Budgeting for water damage repairs requires analyzing material costs, labor rates, and long-term value. Early intervention saves 30-50% compared to full reconstruction of compromised asphalt surfaces.

Factors Influencing Repair Expenses

Material quality, climate severity, and existing damage depth drive asphalt seepage repair costs. A 2023 National Asphalt Pavement Association study shows regions with frequent freeze-thaw cycles spend 22% more annually on watertight asphalt maintenance than warmer areas.

  • Climate: Extreme temperature shifts increase crack sealing frequency
  • Damage severity: Subbase repairs cost $8-$12/sq.ft versus $3-$5/sq.ft for surface fixes
  • Material choice: Polymer-modified sealants last 5-7 years vs 2-3 years for standard options

DIY vs. Professional Asphalt Water Damage Repair Costs

Homeowners can tackle minor cracks with $0.50/linear foot filler, but improper fixes often lead to base failures costing $1,800+ per 500 sq.ft. Professional asphalt water mitigation services average $2.00-$4.50/sq.ft but include:

  1. Infrared thermal patching for seamless repairs
  2. Ground-penetrating radar scans detecting hidden voids
  3. 5-year warranties on labor and materials

For persistent water seeping into asphalt, engineered solutions like French drains ($15-$30/linear foot) or catch basin installations ($1,200-$5,000) often prove more cost-effective than repeated surface treatments.

Up next: How eco-friendly innovations are reshaping asphalt water prevention strategies while protecting local watersheds.

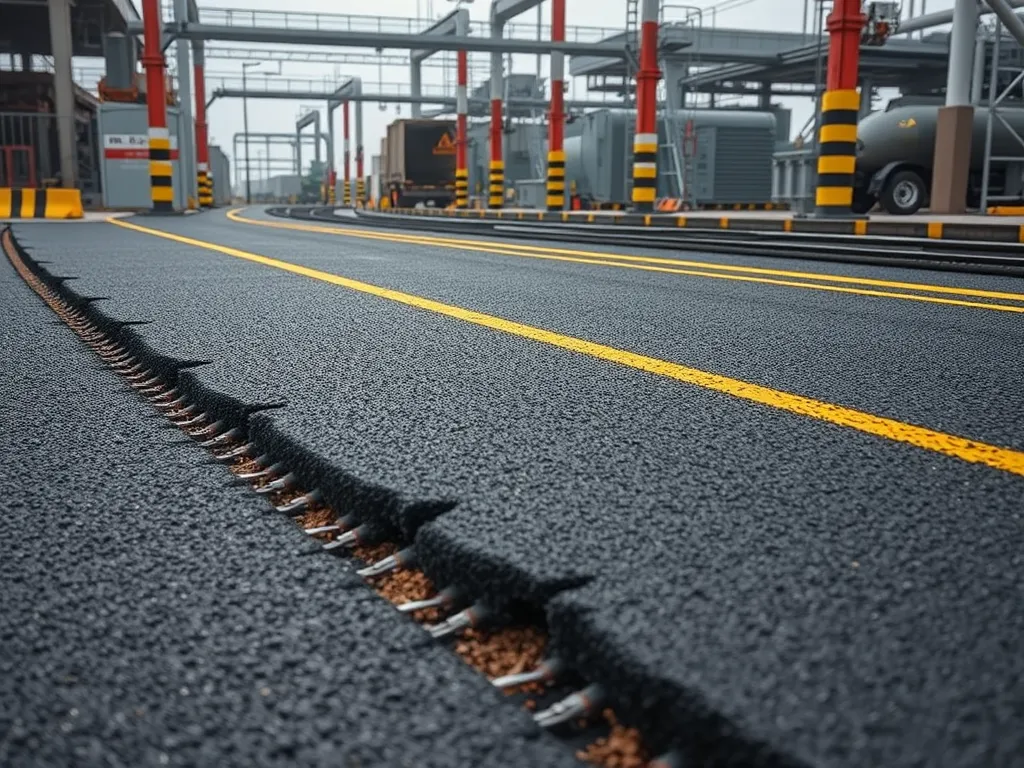

Asphalt road showing techniques for water damage mitigation

Environmental Considerations in Asphalt Water Management

Managing stormwater runoff from paved surfaces requires balancing durability with ecological responsibility. Every square foot of asphalt sends 55-60 gallons of contaminated water into storm drains annually during heavy rains. New approaches tackle this while protecting pavement structure.

Reducing Contaminated Runoff From Asphalt Surfaces

Traditional asphalt surfaces act as pollution conveyors, carrying motor oil, heavy metals, and de-icing salts into waterways. Permeable asphalt pavements with 16-22% void spaces allow 3-5 gallons per minute of water infiltration. Combined with bioswales or retention basins, these systems filter 80-90% of suspended solids before water reaches aquifers.

Eco-Friendly Sealants and Drainage Solutions

Bio-based sealants using soybean oil or pine tar derivatives reduce VOC emissions by 65% compared to coal-tar products. These water-resistant coatings maintain 95% effectiveness for 2-3 years. For drainage, French drains lined with geotextile fabric paired with 4-inch perforated PVC pipes remove 150-200 gallons per hour from saturated subbases.

Green infrastructure elements like rain gardens with native plants can handle runoff from 1,000 sq ft asphalt areas. When paired with permeable pavements using PG 64-22 polymer-modified binders, these systems cut thermal pollution by 15°F in discharged water. Initial costs run $8-$12 per sq ft but lower long-term maintenance by 40%.

With proper planning, asphalt water mitigation can meet EPA’s Phase II Stormwater Regulations while extending pavement life. Next, let’s examine how these environmental strategies impact project budgets and lifecycle costs.

Frequently Asked Questions (FAQs)

How Do You Fix Standing Water on Asphalt?

To fix standing water on asphalt, evaluate your drainage system and slope. Create a suitable slope to direct water away and consider installing catch basins or drain pipes. Patch surface imperfections that may be trapping water. Using permeable asphalt can also help by allowing water to infiltrate through the surface.

What is a Water Damage Mitigation Plan?

A water damage mitigation plan involves a comprehensive strategy to prevent and address water-related issues in asphalt surfaces. It includes preventive measures like proper drainage design, regular maintenance, sealcoating, and a detailed process for assessing and repairing water damage when it occurs.

What Happens When Water Gets Under Asphalt?

When water gets under asphalt, it can cause subsurface erosion, weakening the base layer that supports the pavement. This can lead to structural failures such as cracks, potholes, and sinkholes. Over time, the integrity of the asphalt is compromised, resulting in costly repairs.

How Much Does Water Damage Mitigation Cost?

The cost of water damage mitigation can vary significantly based on severity and chosen solutions. Simple repairs may range from $3 to $5 per square foot, while extensive mitigation projects, including drainage systems and full-depth repairs, can reach up to $12 per square foot. Professional services typically cost between $2.00 to $4.50 per square foot.

Closing Thoughts

Water damage mitigation is vital for maintaining asphalt’s structural integrity and longevity. Effective drainage solutions, regular sealcoating, and prompt repairs are essential strategies. Addressing these factors not only prevents costly damages but also enhances the safety and appearance of your asphalt surfaces.

Understanding how water infiltrates asphalt and causes deterioration equips you to take proactive measures. Implementing proper slope designs, utilizing quality sealants, and being mindful of environmental impacts can mitigate problems before they escalate. Moreover, knowing the cost implications of repairs allows for informed budgeting to sustain your asphalt investments.
