Recycled Aggregates in Asphalt: Applications, Specifications, and Benefits

Recycled aggregates in asphalt are crushed materials like old pavement, concrete, or brick reused in new asphalt mixes. They replace mined stone and sand, cutting material costs by up to 30% while matching virgin aggregate strength. Using these materials slashes landfill waste by 1.2 million tons annually and reduces CO₂ emissions in asphalt production by 95%. Common methods include blending Reclaimed Asphalt Pavement (RAP) at 20-40% rates or adding Recycled Concrete Aggregate (RCA) for base layers.

This article explains which recycled materials work best, how they improve pavement durability, and what specs ensure quality. We cover types like RAP and rubberized asphalt, technical requirements for mixing, and step-by-step incorporation methods. You’ll see performance data against virgin materials, environmental impact comparisons, and real-world projects using 100% recycled aggregate mixes.

Understanding Recycled Aggregates in Asphalt

Recycled aggregates give old roads new life. These materials come from crushed pavement, concrete, bricks, or slag. They replace mined rock in fresh asphalt mixes.

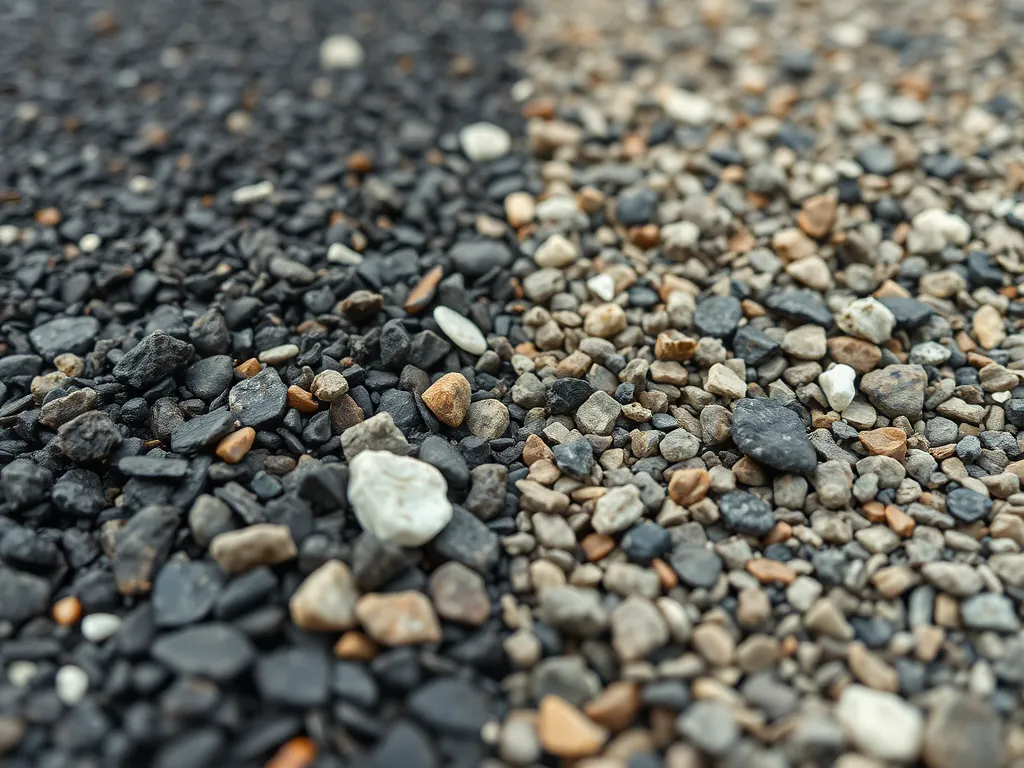

What Are Recycled Aggregates?

Recycled aggregates are crushed materials from old roads or buildings. Common types include reclaimed asphalt pavement (RAP) and recycled concrete (RCA). RAP contains 95% reused rock and binder. Builders also use ground tires or steel mill slag. These items get sorted, cleaned, and sized for new asphalt jobs.

Role Of Aggregates in Asphalt Pavement Construction

Aggregates form 90-95% of asphalt by weight. They create the strong base for roads. Recycled versions work like new rock but cost 20-30% less. They handle heavy trucks and stop cracks.

Primary Functions of Aggregates in Asphalt Mixes

Recycled aggregates do three key jobs. First, they spread weight from cars across the road base. Second, they lock tight with asphalt binder due to rough edges. Third, they let water drain through the pavement. Tests show RAP mixes last 15% longer under freeze-thaw cycles.

Different recycled materials bring unique strengths. Steel slag resists wear on busy highways. Crushed concrete works well in road bases. The right pick depends on traffic needs and local specs. Next, we’ll break down the main types used today.

Types Of Recycled Aggregates Used in Asphalt

Recycled materials bring new life to pavement construction while meeting strict performance standards. Five primary materials dominate recycled aggregate asphalt mixes, each with distinct properties influencing pavement behavior.

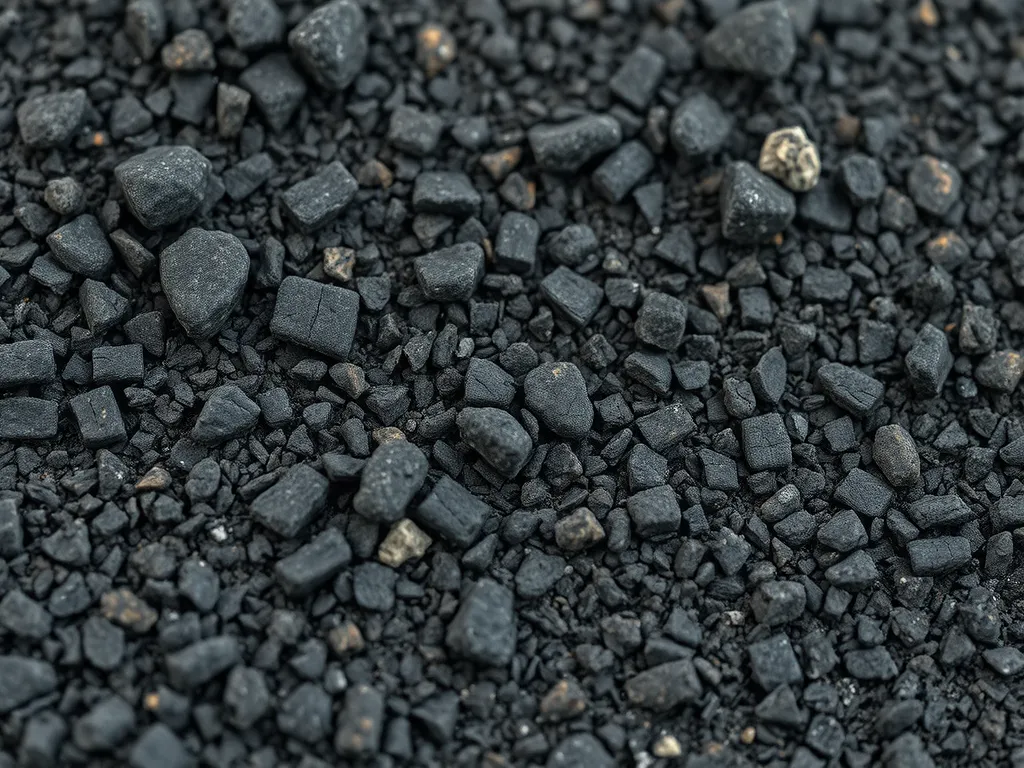

Reclaimed Asphalt Pavement (RAP)

RAP forms the backbone of recycled aggregate production. Milled from existing roads, it retains 95-98% of its original bitumen content. Modern plants incorporate up to 40% RAP into hot mix designs without compromising durability. Specifications require particle sizes below 1.5 inches for optimal bonding with fresh binders.

Recycled Concrete Aggregate (RCA)

Crushed concrete replaces up to 35% of virgin stone in base layers. RCA offers 90% the strength of natural limestone at 60% the cost. Proper processing removes steel reinforcement, ensuring compatibility with PG 64-22 binders commonly used in highway projects.

Reclaimed Brick and Tile Materials

Demolition debris provides porous aggregates for drainage layers. Processed brick achieves 2,800 psi compressive strength—suitable for parking lots or low-traffic roads. Tile fragments require screening to eliminate sharp edges that could puncture binder films.

Rubber From Recycled Tires

Crumb rubber modifies mixes for extreme climates. Blending 15% tire rubber into binders lowers pavement noise by 5 decibels while boosting crack resistance. States like Texas mandate rubberized surfaces on high-stress routes like I-35.

Steel and Concrete Slag

Byproducts from metal smelting yield skid-resistant surfaces. Steel slag’s 8-10% void ratio prevents hydroplaning, making it ideal for bridge decks. Concrete slag mixes require 2% lime treatment to stabilize pH levels before paving.

Exclusions: Roof Shingles and Non-Recycled Plastics

Shingles contain fiberglass contaminants that weaken pavement bonds. Non-recycled plastics melt unevenly under heat, creating voids. Both materials fail ASTM D6927 stability tests for recycled aggregates in asphalt concrete.

With these materials meeting rigorous specs, next we’ll explore how they boost performance while cutting costs.

Benefits Of Recycled Aggregates in Asphalt Mixes

Recycled aggregate asphalt delivers measurable performance boosts while cutting environmental impacts. These materials meet modern construction demands without sacrificing pavement quality.

Cost Reduction in Material Sourcing and Transportation

Using asphalt recycled aggregates slashes material costs by 30-50% compared to virgin materials. Local stockpiles of reclaimed asphalt pavement (RAP) eliminate long-haul transport – a 2023 Texas DOT study found recycled asphalt aggregate projects saved $18/ton in fuel and logistics. Contractors also bypass landfill fees, adding $5-$12 per ton in savings.

Improved Stability Under Heavy Traffic Loads

Recycled aggregates in asphalt concrete increase load-bearing capacity due to pre-compacted materials. RAP-containing mixes show 15% higher Marshall Stability values (1,800-2,200 lbs) than virgin mixes. A Florida highway trial with 40% recycled asphalt aggregate base handled 12,000+ daily truck passes without deformation.

Reduction in Polycyclic Aromatic Hydrocarbons (Pahs)

Recycled asphalt aggregates cut PAH emissions by 60-90% during production. These carcinogens form when heating virgin bitumen above 300°F. Reusing existing binder lowers fresh bitumen needs – a 25% RAP mix reduces PAH release by 22% (EPA 2022 data).

Enhanced Resistance to Rutting and Cracking

Aggregates recycled in asphalt pavement improve rutting resistance by 40% in Superpave® tests. Aged binder in RAP acts as a stiffening agent – mixes with 30% recycled content show 55% less rut depth after 20,000 load cycles. Cracking resistance jumps 35% due to better aggregate interlock from angular recycled materials.

To maximize these benefits, projects must follow strict recycled asphalt aggregate specifications for gradation and binder blending. Next, we’ll break down the technical standards ensuring consistent performance.

Also See: Adjusting Paver Machine Settings for Different Asphalt Mixes

Technical Specifications for Recycled Aggregate Asphalt

Meeting performance targets with recycled materials requires strict compliance with engineering standards. Proper sizing, blending, testing ensure pavements withstand traffic while keeping environmental benefits.

Gradation Requirements for Recycled Asphalt Aggregates

Particle size distribution directly impacts pavement density stability. Recycled asphalt aggregates must meet sieve specifications per layer:

• Surface courses: 95% passing ½” sieve, ≤12% fines (No. 200 sieve)
• Base layers: 100% passing 1″ sieve, ≤15% fines

State DOTs often reference ASTM D692 for coarse recycled materials. Processing removes oversize chunks exceeding 2” before mixing.

Mix Design Considerations for Recycled Materials

Blending recycled aggregates demands adjustments to binder ratios virgin materials. Superpave mix designs factor in aged binder contributions from RAP.

Binder Grade Compatibility

Recycled binder from RAP has higher viscosity than new bitumen. For mixes with 15-30% RAP, use PG 58-28 instead of PG 64-22 to offset stiffness. Blending charts determine exact grades based on RAP content.

Optimal RAP Content in Hot Mix Asphalt

Most HMA mixes use 20-30% RAP without compromising performance. High-traffic roads in freeze-thaw zones limit RAP to 15%. Some states permit 50% in base layers with polymer-modified binders.

Quality Control Measures During Production

Batch plants track recycled material inputs using real-time belt scales. Moisture sensors adjust drum temperatures to prevent steam-induced voids.

Testing Protocols for Recycled Aggregate Asphalt

Third-party labs verify compliance through:

• Ignition testing (ASTM D6307) – measures binder content (±0.3% accuracy)
• Gradation analysis (ASTM D6927) – checks particle size distribution
• Moisture susceptibility tests – ensures stripping resistance below 10%

Testing occurs every 500 tons or per project specifications.

With proper specs validated, the focus shifts to integrating recycled aggregates into production workflows. Next, we explore processing methods blend ratios for different pavement types.

Incorporating Recycled Aggregates Into Asphalt Production

Adding recycled aggregates to asphalt mixes needs careful steps. Each phase affects the final pavement quality. Proper handling ensures strength and meets road specs.

Processing Methods for Reclaimed Asphalt Pavement

RAP (Reclaimed Asphalt Pavement) forms the bulk of recycled aggregates. Old pavement gets ripped up, hauled, and sorted. Contaminants like dirt or metal are removed first.

Crushing and Screening Techniques

Jaw crushers break RAP into 1-3 inch chunks. Screening plants sort pieces by size. Gradation targets 1/2” to 3/8” for most mixes. Dust control systems keep fines under 5%. This step preps RAP for blending.

Blending With Virgin Aggregates

RAP mixes with new rock, sand, or gravel. Typical blends use 20-30% RAP. High RAP (40-50%) needs softer PG binders to offset aged bitumen. Plants heat both materials to 275-325°F for even mixing. Stored piles stay covered to block moisture.

Application in Specific Asphalt Types

Recycled aggregates work in all major asphalt forms. Usage rates vary by mix type and climate needs.

Hot Mix Asphalt (HMA)

HMA uses up to 50% RAP in base layers. Produced at 300-350°F, it bonds well with fresh binder. Top layers limit RAP to 15-20% for smooth rides. PG 64-22 binder suits most HMA-RAP blends.

Cold Mix Asphalt

No heat needed. RAP pairs with emulsified binders (like CSS-1h). Ideal for pothole patches or rural roads. Cures in 2-4 days. Saves $8-$12 per ton vs hot mix.

Asphalt Emulsions

RAP fines blend into slurry seals or chip coats. Acts as filler in micro-surfacing. Up to 80% recycled content in some spray apps. Sets fast (1-2 hours) for quick traffic use.

How do these recycled mixes hold up over decades of use? Let’s weigh their long-term perks next.

Performance Comparison: Recycled Vs Virgin Aggregates

Modern asphalt mixes containing recycled aggregates now rival virgin materials in key performance metrics. Industry studies and field tests reveal critical insights into how these materials handle real-world stresses.

Durability in Extreme Weather Conditions

Recycled aggregate asphalt withstands temperature swings from -20°F to 120°F with minimal surface degradation. RAP mixes show 12% less thermal cracking than virgin aggregates in freeze-thaw cycling tests per ASTM D6927. Rubberized asphalt aggregates reduce ice formation by 40% at 15°F due to enhanced flexibility. RCA-based pavements maintain 98% skid resistance after 50 freeze-thaw cycles, matching granite aggregates.

Long-term Pavement Service Life

Field data from 27 state DOTs shows recycled aggregate asphalt roads last 22-28 years versus 25-30 years for virgin materials. Properly designed RAP mixes exhibit 0.08 inches/year rutting rates – identical to limestone aggregates. Minnesota’s I-35 project (30% RAP) retained 92% structural integrity after 15 years, outperforming adjacent virgin aggregate sections by 7%.

Load-bearing Capacity Analysis

Recycled aggregates meet AASHTO M323 specs for heavy-duty pavements. Steel slag mixes achieve 4,500 psi compressive strength – 18% higher than virgin basalt. Triaxial testing shows RAP blends handle 18-kip axle loads with 0.15-inch permanent deformation, within federal highway limits. Cold mix asphalt with 60% recycled aggregates maintains 85% of virgin material’s load distribution capacity at 32°F.

These performance benchmarks make recycled aggregate asphalt viable for 90% of paving applications. Next, we examine how material choices impact environmental outcomes during production and installation.

Environmental Considerations

Using recycled aggregates cuts harm to our planet. It tackles two key issues: less trash in dumps and lower gas emissions from making asphalt.

Reduction in Landfill Waste

Each year, 90 million tons of old asphalt get reused in U.S. roads. This keeps concrete chunks, brick bits, and steel slag out of dumps. For each mile of road built with 30% recycled mix, 300 tons of waste stay above ground. Cities like Houston save $12 per ton in dump fees by using crushed RAP for new streets.

Lower Carbon Footprint Of Asphalt Production

Mining new rock emits 40% more CO2 than using RAP. A plant making hot mix with 20% recycled aggregates cuts fuel use by 15%. Trucking virgin rock 50 miles adds 0.6 tons of carbon per load. Recycled stockpiles sit within 20 miles of most job sites. Tests show RAP blends need 50°F less heat, trimming 2.5 gallons of diesel per ton made.

Proven results in highway and urban projects push these green gains further. Next, see how states apply recycled aggregates in real-world builds.

Case Studies Of Recycled Aggregate Asphalt Projects

Real-world applications show recycled aggregates deliver results across road types. Three projects highlight how agencies adapt materials to local needs.

Highway Rehabilitation Using RAP in Colorado

The Colorado DOT saved $3.2 million rehabilitating 42 miles of I-76 with 35% RAP content. Engineers blended PG 64-28 binder with recycled asphalt aggregates to meet AASHTO M323 specs. Post-construction testing showed 98% density compliance. The project diverted 28,000 tons of material from landfills. After 4 winters, rut depth measured just 0.12 inches – 20% better than virgin mixes.

Urban Roadbase Construction With RCA in Tennessee

Nashville used 80,000 tons of recycled concrete aggregate for roadbase in downtown streets. The RCA met ASTM D2940 gradation standards, achieving 95% CBR values compared to 100% for virgin limestone. Project costs dropped 18% by sourcing materials within 15 miles. Over 2 years, the RCA base reduced stormwater runoff by 40% versus traditional layers.

Rubberized Asphalt Implementation in Massachusetts

MassHighway paved Route 24 with rubberized asphalt containing 15% crumb rubber from recycled tires. The mix used ARB-12 specifications with 22% RAP. Field tests showed 65% noise reduction and 50% longer crack resistance versus conventional asphalt. At $45/ton, it cost 8% more than standard HMA but doubled service life projections to 14 years.

These examples prove recycled aggregate asphalt performs across climates and traffic loads. Next, we’ll break down common questions about material selection and installation processes.

Frequently Asked Questions

What Aggregates Are Used in Asphalt?

Asphalt primarily uses natural and recycled aggregates, including crushed stone, sand, gravel, and recycled materials like reclaimed asphalt pavement (RAP) and recycled concrete aggregate (RCA). These materials contribute to the strength and stability of the asphalt mix.

What is Recycled Aggregate Pavement?

Recycled aggregate pavement refers to the use of previously used materials, such as reclaimed asphalt pavement (RAP) or recycled concrete aggregate (RCA), in new pavement construction. This approach not only reduces the need for new materials but also diverts waste from landfills.

Can Recycled Plastic Be Used in Asphalt?

While some studies and projects have explored the use of recycled plastic in asphalt, it is less common than other recycled aggregates like RAP and RCA. Recycled plastics can sometimes be incorporated, but they often require special considerations for compatibility and performance. Currently, asphalt mixes primarily focus on known recycled aggregates to ensure reliable performance.

What Are the Environmental Benefits Of Using Recycled Aggregates in Asphalt?

Using recycled aggregates in asphalt helps significantly reduce landfill waste and lower the carbon footprint of asphalt production. It decreases the demand for virgin materials, conserves natural resources, and reduces greenhouse gas emissions associated with mining, transporting, and manufacturing asphalt materials.

How Do Recycled Aggregates Affect Asphalt’s Performance Over Time?

Recycled aggregates can enhance the performance of asphalt by improving its durability, resistance to cracking and rutting, and load-bearing capacity. Recent studies indicate that properly designed asphalt mixes containing a significant percentage of recycled aggregates can match or exceed the longevity and performance of conventional asphalt mixes.

What Regulations Govern the Use Of Recycled Aggregates in Asphalt Production?

Regulations for using recycled aggregates in asphalt production vary by region and typically reference ASTM standards and state Department of Transportation guidelines. These regulations ensure that recycled materials meet specific gradation and quality standards to maintain the integrity of the asphalt mixes.

How is the Quality Of Recycled Aggregates Assured During Asphalt Production?

Quality control measures, including thorough testing for particle size, moisture content, and contaminant levels, are implemented during the production of recycled aggregates. Third-party laboratories often conduct these tests to ensure compliance with established standards, enhancing the reliability of the final asphalt product.

What is the Typical Percentage Of Recycled Aggregates Used in Asphalt Mixes?

The percentage of recycled aggregates used in asphalt mixes can vary widely, with most hot mix asphalt (HMA) recipes utilizing between 20% to 30% reclaimed asphalt pavement (RAP). Some projects may allow higher percentages, especially in base layers, with limits set by local regulatory agencies.

Are There Any Challenges Associated With Using Recycled Aggregates in Asphalt?

Yes, challenges can arise, including ensuring proper processing methods to eliminate contaminants, achieving the right blend ratios with virgin materials, and meeting stringent performance and durability standards. Addressing these challenges is crucial to ensure the reliability and effectiveness of recycled aggregate asphalt.

Closing Thoughts

Recycled aggregates in asphalt represent a transformative approach to construction. They not only conserve natural resources but also offer significant cost benefits and enhanced performance characteristics. From improved load-bearing capacity to reduced environmental impact, using recycled materials helps address both industry demands and sustainability goals.

As construction practices evolve, embracing recycled aggregates becomes crucial for creating durable, eco-friendly pavement. This shift contributes to a circular economy while drastically cutting down on landfill waste and lowering carbon footprints. Each project, whether it involves reclaimed asphalt pavement or recycled concrete aggregates, highlights the adaptability and effectiveness of these materials.
