Asphalt Emulsion Technology: Composition, Applications, and Advantages

Asphalt emulsion technology blends liquid asphalt (bitumen) with water and emulsifying agents to create a versatile, low-temperature paving material. Unlike traditional hot-mix asphalt, it requires no heating—cutting energy use by 30-50%—and stays workable at 50-80°F. Used for road repairs, chip seals, and recycled pavements, this eco-friendly mix reduces VOC emissions by 80% compared to hot asphalt. Innovations like polymer-modified emulsions add flexibility in extreme climates.

This article breaks down how asphalt emulsions work. You’ll learn about their chemical makeup, production methods, and top uses like slurry seals or cold patching. We’ll compare emulsion types (anionic, cationic, polymer), analyze costs, and explore their role in sustainable road projects. Technical specs, climate performance, and safety standards are also covered.

What is Asphalt Emulsion?

Asphalt emulsion blends liquid asphalt with water. This mix stays stable through a chemical agent. Unlike hot asphalt, it flows at room temp. No heat means safer handling and lower energy use. It’s a go-to for roads, patches, and seals.

Meaning Of Asphalt Emulsion

Asphalt emulsion is 55-70% asphalt droplets suspended in water. An emulsifier (like soap) keeps the mix from splitting. The emulsion breaks when applied, letting water escape. The asphalt then bonds to surfaces. This process works for paving, repairs, or sealing cracks.

Components Of Asphalt Emulsion Formula

Three main parts make up asphalt emulsion:

Additives like polymers or acid adjust performance. Polymers boost strength. Acid speeds up curing. These tweaks let emulsions work in rain, heat, or cold.

The right blend of parts shapes how fast it sets, sticks, or lasts. Next, we’ll break down the types built from this formula.

Types Of Asphalt Emulsion

Asphalt emulsions vary by chemical charge, additives, and performance traits. Each type serves specific road construction needs based on climate, aggregate type, and project goals.

Anionic Asphalt Emulsion

Anionic asphalt emulsions carry a negative charge. Made with asphalt, water, and an anionic emulsifier (like fatty acids), they work best with limestone or granite aggregates. These emulsions break slowly, making them ideal for chip seals on low-traffic roads. Common grades include RS-1 and SS-1, used at 120-160°F.

Cationic Asphalt Emulsion

Cationic asphalt emulsions have a positive charge. Blended with amines or quaternary salts, they bond faster to silica-rich aggregates like gravel. CRS-2 and CSS-1 grades dominate tack coats and cold mixes. Faster setting suits high-traffic areas—roads reopen within 2-4 hours.

Nonionic Asphalt Emulsion

Nonionic asphalt emulsions lack electrical charge. Stabilized with cellulose derivatives, they resist water wash-off and perform in varied pH conditions. Primarily used for dust control on rural roads or soil stabilization. Slower curing extends workability to 8-12 hours.

Polymer-modified Emulsion Asphalt

Polymer-modified emulsion asphalt adds SBS, latex, or elastomers to the mix. This boosts tensile strength by 40-60% compared to standard emulsions. PME grades handle heavy truck traffic and extreme temperatures (-20°F to 140°F). Applied in microsurfacing or pothole repairs, they last 8-12 years with proper maintenance.

High-float Asphalt Emulsions

High-float asphalt emulsions use thickeners like aluminum stearate to create a gel structure. The HF-150 and HF-200 grades allow thicker film coatings on aggregates, slowing breakdown under traffic. Ideal for patching or surface courses on steep grades (up to 8% slope).

With these emulsion types defined, let’s explore how they’re made—from raw materials to mixing processes.

How Asphalt Emulsion is Produced

Asphalt emulsion production transforms liquid asphalt into microscopic droplets suspended in water. This process requires precise temperature control, specialized equipment, and chemical emulsifiers to stabilize the mixture.

Key Steps in Emulsion Asphalt Mixing

Producing asphalt emulsions involves three critical phases. First, bitumen is heated to 250-350°F to reduce viscosity. Next, it’s pumped into a colloid mill at a 60:40 ratio with water. The mill’s high-speed rotor (3,000-4,000 RPM) shears the asphalt into droplets under 20 microns. Finally, emulsifiers like fatty acids or amines are added to prevent coalescence.

Quality checks measure pH levels (1.5-7.0) and residue content (55-70%). Storage temperatures stay below 185°F to maintain stability. Improper mixing can cause “breaking” – premature separation rendering the emulsion unusable.

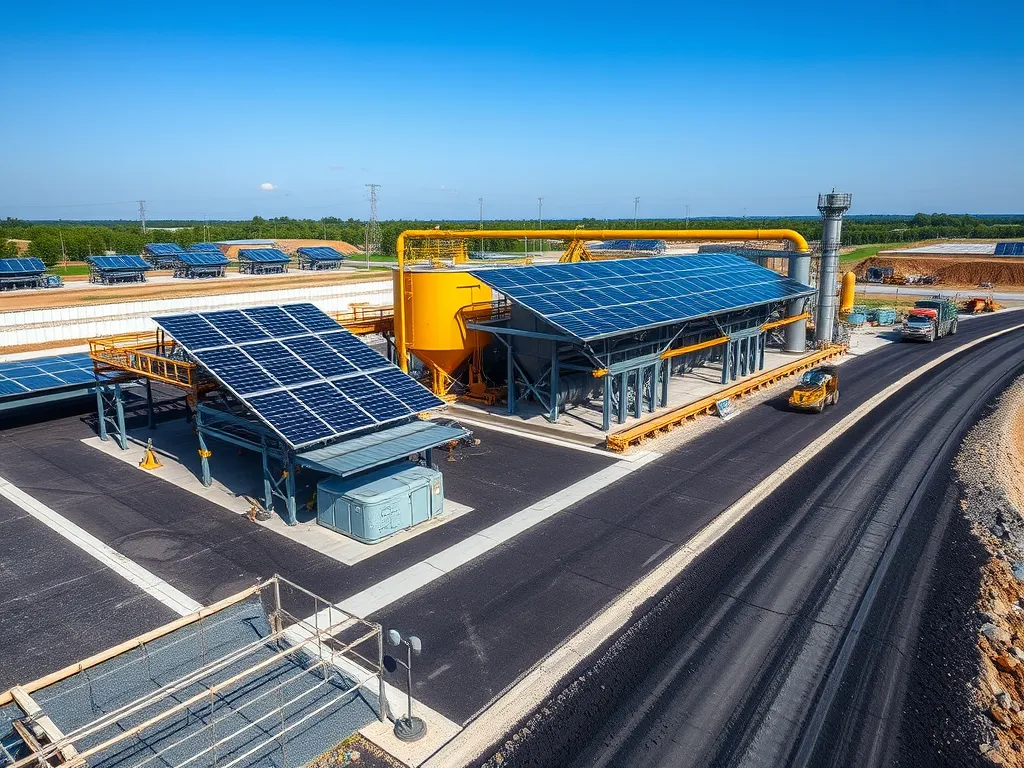

Role Of an Asphalt Emulsion Plant

Modern emulsion plants feature heated storage tanks, emulsifier dosing systems, and colloid mills. Automated controls adjust flow rates (±2% accuracy) and monitor particle size distribution. Plants produce 10-50 tons per hour, with polymer-modified emulsions requiring dual-shaft mills for thorough blending.

Key components include: – Bitumen pre-heaters (maintain 280°F) – Surge tanks (prevent flow fluctuations) – Testing labs (check SET [Storage Stability Test] and distillation residues)

Advanced plants integrate PG binder modifications, adding SBS polymers or latex for enhanced adhesion. Energy-efficient designs cut fuel use by 30-40% compared to hot-mix asphalt facilities.

With production methods established, the next frontier lies in optimizing asphalt emulsion technology for extreme climates and recycled materials.

Also See: Asphalt History in Ancient Civilizations

Technologies in Asphalt Emulsion Production

Producing asphalt emulsions requires balancing chemistry, equipment, and temperature control. Modern methods optimize performance while meeting environmental standards.

Conventional Emulsified Asphalt Methods

Traditional production relies on colloid mills to blend 60-70% asphalt cement with water and emulsifiers. The mill applies intense shear forces to break asphalt into droplets under 20 microns. Anionic or cationic surfactants stabilize the mixture, creating emulsions with 55-65% residual asphalt content. Plants operate at 250°F to 300°F to maintain flow without degrading additives.

This method works for basic emulsion types like CSS-1h or CRS-2. Equipment costs start at $150,000 for small batch systems. Limitations include slower curing times and sensitivity to temperature shifts during application.

Advanced Asphalt Emulsion Technologies

New systems tackle traditional weaknesses. Polymer-modified emulsions integrate SBS or latex polymers, boosting crack resistance by 40%. High-shear mills achieve droplet sizes under 5 microns, enhancing emulsion stability for storage up to 6 months.

Cold mix technologies now use engineered emulsifiers that allow mixing at 50°F. This cuts energy use by 35% compared to hot asphalt. Automated pH controllers maintain precise chemical balances, reducing waste by 12-18% per batch. Some plants employ inline recycling, blending up to 30% reclaimed asphalt pavement (RAP) into fresh emulsion.

These advancements enable emulsions to meet Superpave specifications for high-traffic roads. Costs for polymer-modified systems run $85-$120 per ton, but lifecycle savings reach 25-40% through reduced maintenance.

With stronger formulas and smarter production, emulsion asphalt properties now rival hot mix in many scenarios. Next, let’s explore how these innovations translate into real-world asphalt emulsion applications.

Primary Uses Of Asphalt Emulsion

Emulsion asphalt serves multiple roles in modern road construction. Its flexibility stems from combining bitumen droplets with water-based surfactants. Below are five core functions driving its popularity.

Tack Coat Applications in Asphalt Paving

Emulsion asphalt excels as a tack coat between pavement layers. It bonds fresh overlays to existing surfaces with 40-50 psi strength. Cationic types like CSS-1h cure faster than traditional cutbacks. No heating is needed, cutting fuel use by 35% compared to hot-applied binders. This method prevents slippage under traffic loads exceeding 10,000 ESALs (Equivalent Single Axle Loads).

Surface Treatments (Chip Seal, Slurry Seal)

Chip seals spray emulsion at 0.30-0.45 gallons per square yard before embedding crushed stone. RS-2 grades offer superior adhesion in temperatures below 50°F. Slurry seals blend emulsion with fine aggregates, filling cracks up to 1/4 inch wide. Type III slurry mixes last 6-8 years, delaying costly reconstructions by sealing oxidative cracks.

Cold Mix Asphalt Emulsion for Repairs

Pothole fixes rely on cold mix emulsion formulas workable at 40°F. Stockpile stability lets crews store mixes for six months without hardening. Some blends incorporate 95% recycled millings, slashing material costs by $15-$25 per ton. Rapid compaction within 30 minutes restores traffic flow on high-volume roads.

Microsurfacing and Pavement Preservation

Polymer-modified emulsions form microsurfacing layers curing in 60 minutes. Applied at 15-20 lbs/sq yd, they correct rutting up to 0.75 inches deep. Enhanced skid resistance meets ASTM E274 friction standards. This extends pavement life by 5-7 years at 30% lower cost than hot-mix overlays.

Recycling With Asphalt Emulsion Binder

Emulsion binds reclaimed asphalt pavement (RAP) during in-place recycling. Milled material mixed with 2-3% emulsion creates stable bases without hauling waste. Projects reuse 100% RAP, lowering carbon footprints by 40%. States like Texas report 25-year service lives for emulsion-recycled interstate sections.

These functions highlight how emulsion asphalt properties meet evolving infrastructure demands. Next, we’ll break down the cost and durability benefits driving its adoption.

Advantages Of Asphalt Emulsion Technology

Asphalt emulsion technology provides distinct benefits for road construction and maintenance. Its mix of practicality and innovation addresses common challenges in paving projects while supporting long-term infrastructure goals.

Cost-effectiveness Of Emulsion Asphalt Mix

Cold application cuts fuel consumption by up to 50% compared to hot-mix asphalt. Contractors avoid heating costs, with batch temperatures staying below 100°F. Labor and machinery costs drop by 20-30% due to faster curing times and simplified logistics. Recycling old pavement with asphalt emulsion binder slashes material costs by 35-40%, as reclaimed asphalt pavement (RAP) requires less virgin aggregate.

Durability Of Asphalt Emulsion Mixtures

Polymer-modified asphalt emulsion mixtures resist cracking in temperatures from -20°F to 140°F. Roads built with these blends handle over 10,000 axle loads annually, lasting 12-15 years before resurfacing. Chip seals made with cationic asphalt emulsions reduce water infiltration by 80%, delaying pothole formation. High-float variants maintain stability on slopes up to 8% gradient without slippage.

Versatility in Asphalt Emulsion Applications

From slurry seals on suburban streets to microsurfacing on interstate highways, this material adapts. Tack coats made with asphalt emulsion bond layers at 0.05-0.15 gal/yd² rates, preventing delamination. Cold mixes repair potholes in 40°F weather, setting fully within 24 hours. Gravel roads stabilized with CSS-1h emulsions withstand 500% more traffic than untreated surfaces.

With such broad capabilities, asphalt emulsion technology reshapes how crews approach pavement projects. Up next: analyzing how climate, traffic, and mix designs impact its long-term performance.

Performance and Limitations

Asphalt emulsion technology brings distinct pros but also has functional limits. Knowing both aids in planning road projects with clarity.

How Long Does Asphalt Emulsion Last?

Lifespans vary by application. Chip seals last 5-8 years, slurry seals 2-5 years, and cold mix repairs 3-7 years. High-traffic zones or harsh winters cut durability by up to 30%.

Factors Affecting Lifespan

Four main variables impact longevity:

• Traffic Load: Daily vehicle counts above 10,000 accelerate wear.
• Climate: UV rays oxidize surfaces; freeze-thaw cycles cause cracks.
• Mix Design: Polymer-modified variants add 3-5 years vs. standard formulas.
• Installation Quality: Improper curing (under 24 hours at 50°F+) weakens bonds.

Disadvantages Of Asphalt Emulsion

Constraints include:

Installation teams must monitor weather forecasts and use additives like hydrated lime to counter stripping. Budgets should factor in potential delays from rain or humidity above 85%.

Moving forward, asphalt emulsion technology’s low impact on surroundings makes it a strong pick for regions prioritizing sustainability.

Environmental Safety Of Asphalt Emulsions

Asphalt emulsions stand out as a sustainable choice in pavement construction. Their reduced environmental footprint stems from two core features: low-VOC properties and energy-efficient manufacturing processes.

Low-voc Properties

Traditional hot-mix asphalt releases volatile organic compounds (VOCs) at high temperatures. Asphalt emulsions cut VOC emissions by 50-70% since they’re water-based and require minimal heat. This makes them safer for workers applying chip seals or slurry seals in confined spaces like tunnels. Urban projects in cities like Los Angeles and Houston increasingly use emulsion asphalt to meet strict EPA air quality standards. Low-VOC formulas also reduce odors, a critical factor near schools or residential zones.

Energy Efficiency in Production

Producing emulsified asphalt demands 20-35% less energy than hot-mix asphalt. Standard hot-mix plants operate at 300°F, while emulsion plants run at 120-160°F. Lower temperatures slash fuel consumption—saving 1.2-1.8 gallons of diesel per ton. Modern asphalt emulsion plants also integrate solar heating or waste heat recovery, trimming carbon emissions by up to 40%. Cold mix applications skip heating entirely, cutting energy use to zero during road repairs.

The green advantages of asphalt emulsion technology align with its performance in real-world settings. Let’s examine how durability and cost savings make it a practical solution for varied climates.

FAQ: Asphalt Emulsion Technology

What is the Difference Between Asphalt Emulsion and Tack Coat?

Asphalt emulsion is a broader category that refers to the combination of asphalt, water, and emulsifiers used in various applications, while tack coat specifically refers to a thin layer of asphalt emulsion applied between layers of pavement to enhance bond strength. In essence, all tack coats are asphalt emulsions, but not all asphalt emulsions are used as tack coats.

Is Asphalt Emulsion Suitable for All Climates?

Asphalt emulsion can be used in a variety of climates, but its performance may be influenced by environmental conditions. For instance, while polymer-modified emulsions provide flexibility in extreme temperatures, very cold conditions (below 40°F) can hinder application. In contrast, very hot environments (above 90°F) may negatively affect curing times. Thus, it’s essential to choose the right type of emulsion and follow best practices for the specific climate.

Can Asphalt Emulsion Be Used for Gravel Road Stabilization?

Yes, asphalt emulsion is effective for stabilizing gravel roads. Cationic or anionic emulsions can be used to improve the surface of gravel roads by binding loose aggregates and reducing dust. This can enhance ride quality and prolong the life of the road, making it a practical choice for rural or low-traffic areas.

What Are the Storage Requirements for Asphalt Emulsions?

Asphalt emulsions should be stored in cool, dry conditions away from direct sunlight to maintain stability. Ideally, they should be kept at temperatures below 185°F to prevent separation. The use of agitated storage tanks can help maintain the emulsion’s consistency over time.

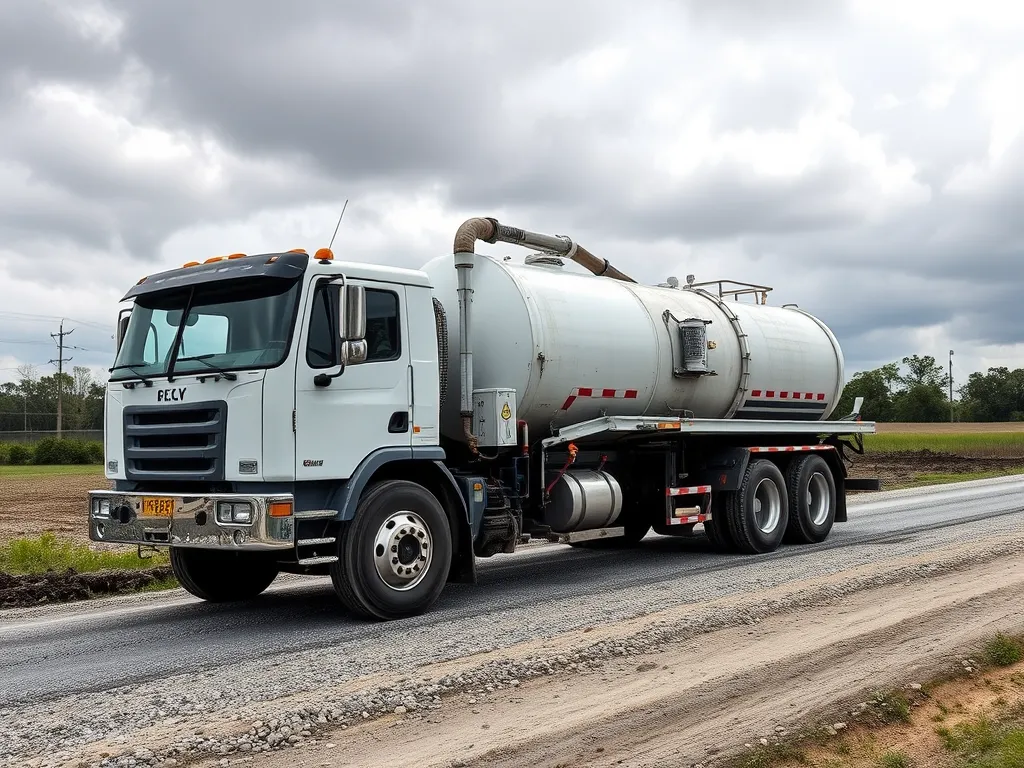

How Do You Apply Asphalt Emulsion?

Asphalt emulsion is typically applied using specialized equipment such as sprayers or distributors. For most applications, the surface is first cleaned, and the emulsion is then sprayed uniformly at the required rate, which varies based on the specific application (e.g., tack coats, surface treatments). Proper techniques ensure effective adhesion and longevity of the application.

What Safety Measures Should Be Taken When Working With Asphalt Emulsion?

When working with asphalt emulsion, workers should wear appropriate PPE (personal protective equipment), including gloves, goggles, and masks, to prevent skin contact and inhalation of fumes, even though the VOC emissions are lower compared to traditional asphalt. Adequate ventilation should be ensured in indoor applications to further mitigate risks.

Closing Thoughts

Asphalt emulsion technology stands as a modern solution in the paving industry, offering a range of benefits. Its diverse applications, from tack coats to surface treatments, showcase its adaptability and efficiency. With significant cost savings and environmental advantages, it meets the growing demand for sustainable construction practices.

While performance factors and certain limitations exist, the overall durability and versatility of asphalt emulsions make them a formidable choice. Whether you’re planning paving projects or considering repairs, asphalt emulsion can deliver reliable results.
