Advanced Asphalt Composites: Building Stronger, Smarter Roads

Advanced asphalt composites are engineered pavement materials combining aggregates, bitumen, and additives like polymer modifiers or recycled fibers. Unlike traditional asphalt, these composites use materials such as elastomers, nanomaterials, or steel fibers to boost durability, reduce cracking, and handle heavier loads. They outperform standard mixes with 30-50% longer lifespans, temperatures from -40°F to 200°F tolerance, and up to 60% recycled content. Key innovations include bio-based binders and graphene-enhanced mixes for eco-friendly strength.

This article explains how advanced composites work, from their polymer-reinforced structures to their role in highways and airport runways. You’ll learn why they resist ruts better than conventional asphalt, how they cut maintenance costs by $8-$12 per square foot over 20 years, and where to source them. We’ll compare performance data, analyze eco-benefits like 15-25% lower CO₂ emissions, and break down costs versus savings.

Fundamentals Of Advanced Asphalt Composites

Advanced asphalt materials transform standard pavements into high-performing infrastructural assets. By mixing traditional ingredients with cutting-edge additives, this technology boosts road quality, longevity, and adaptability.

What is Composite Asphalt?

Composite asphalt binds aggregates, bitumen, and synthetic additives into a unified matrix. Unlike conventional mixes, it incorporates polymer chains, fibers, or nano-scale materials to amplify structural integrity. Such asphalt composite systems tackle rutting, thermal cracking, and moisture damage more effectively than basic asphalt layers.

Is Asphalt Concrete a Composite Material?

Asphalt concrete fits the composite label. Its mix of stone, sand, and bitumen forms a matrix where components work jointly to carry loads. Advanced versions add modifiers like styrene-butadiene-styrene (SBS) or crumb rubber, pushing it into the category of high-performance asphalt composite pavement. This upgrade allows pavings to withstand -40°F cold snaps or 150°F heat without fissuring.

Core Components Of Asphalt Composite Systems

Modern asphalt composite solutions rely on two primary ingredient groups: modifiers that adjust binder behavior and reinforcements that fortify the mix.

Polymer Modifiers and Elastomeric Additives

SBS polymers, latex, or plastomers transform bitumen from brittle to flexible. Adding 3-7% SBS by weight lifts binder viscosity, allowing pavings to rebound after compression. Elastomeric asphalt composites, for instance, show 300% higher strain tolerance than unmodified mixes. Such asphalt modification slashes crack formation by up to 60% in high-stress zones like intersections.

Reinforcement Materials: Fibers and Aggregates

Fibrous materials—cellulose, polyester, or glass strands—weave a 3D web inside the mix, holding aggregates in place. Combined with angular crushed stone or slag, this boosts stability. A 1.5% fiber infusion can lift tensile strength by 40%, critical for bridge decks facing constant vibration. Aggregates with a Los Angeles abrasion loss below 30% further shield pavings from wear.

With foundations laid in material science, asphalt composite systems technology now shifts focus to production methods. Next, how industrial processes turn raw inputs into roads that outlast standard builds.

Advanced Asphalt Composite Technology

Cutting-bit asphalt composite systems blend traditional materials with high-tech additives to boost road performance. This approach transforms how pavements handle stress, climate shifts, and traffic loads.

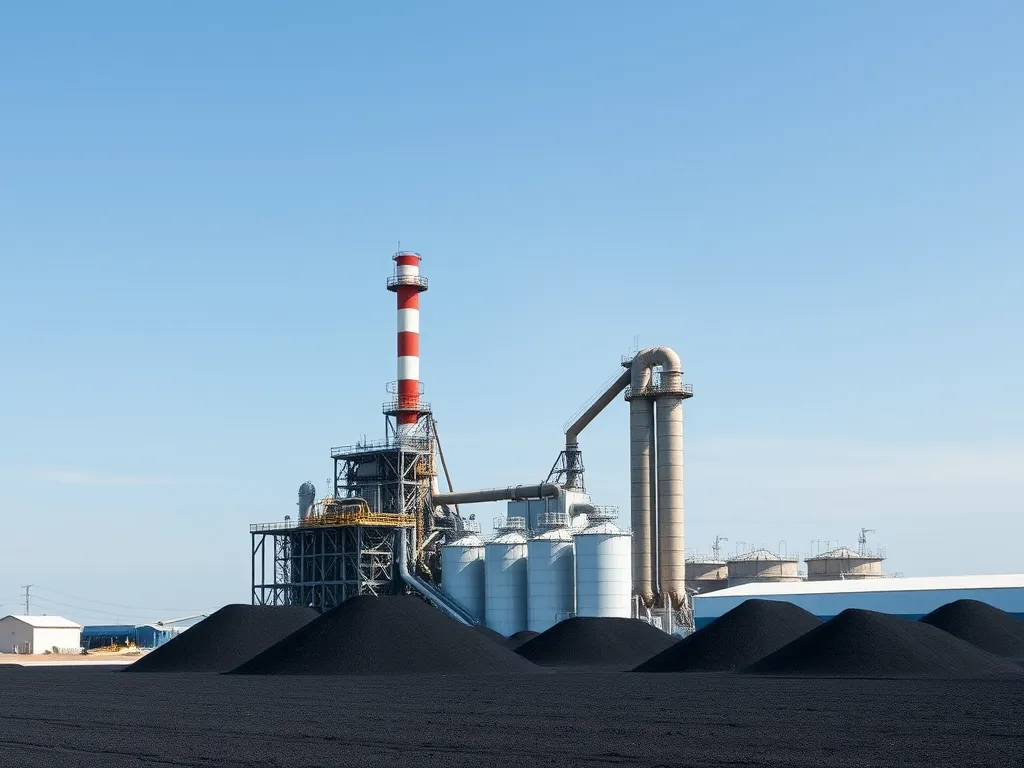

How Are Advanced Asphalt Composites Manufactured?

Production starts with mixing aggregates (crushed stone, sand) with bitumen. Advanced methods add polymer modifiers or recycled asphalt pavement (RAP) at 300-350°F in batch plants. Warm-mix tech lowers temps to 220-250°F, slashing fuel costs by 20%. Cold recycling grinds old pavement, binding it with asphalt composite solutions like foamed bitumen or bio-based agents.

Key Innovations in Asphalt Composite Mix Design

Modern mix formulas focus on longevity and adaptability. Labs now simulate traffic loads and climate conditions to craft materials that outlast standard asphalt by 5-8 years.

Performance-Graded Binders and Their Role

PG binders (classified by temperature range, like PG 76-22) replace old viscosity grades. These binders undergo strict testing for rutting at high temps and cracking below freezing. A PG 82-16 mix, for instance, works in climates from –16°F to 82°F, making it ideal for northern highways.

Enhancements Through Nanomaterials and Biomaterials

Adding 1-3% nano-clay or graphene boosts tensile strength by 40%. Biomaterials like lignin (from paper waste) or soybean oil cut bitumen needs by 15-20%. These asphalt composite innovations also improve UV resistance, slowing surface oxidation that causes brittleness.

With these strides in asphalt composite technology, industries now focus on how such materials perform in real-world conditions. Up next: quantifying durability gains and cost impacts across traffic zones.

Benefits Of Advanced Composite Asphalt Solutions

Advanced asphalt materials redefine pavement performance through engineered material science. These systems merge polymer chemistry with structural engineering to tackle common road failures head-on.

Superior Durability in Extreme Temperatures

Advanced elastic asphalt withstands thermal stress from -40°F to 160°F. Performance grade (PG) binders—asphalt modified with styrene-butadiene-styrene polymers—prevent brittleness in cold climates. Hot-mix asphalt composite mixtures retain flexibility at 90°F+, resisting softening under solar radiation. Tested under AASHTO TP 125 standards, these pavements show 60% less thermal cracking versus conventional mixes.

Enhanced Load-bearing Capacity for Heavy Traffic

Composite asphalt layer designs handle axle loads exceeding 18,000 pounds. Steel slag aggregates and polypropylene fibers boost stiffness modulus to 450,000 psi—double traditional asphalt’s capacity. Elastomeric asphalt composites on the I-95 corridor sustain 25,000+ daily truck volumes with 0.12” rut depth after five years. This makes asphalt composite pavement ideal for ports, freight routes, and military bases.

Resistance to Cracking and Deformation

Nanomaterials like graphene oxide add tensile strength up to 320 psi, slashing fatigue cracking by 40%. Cross-linked polymers in asphalt composite treatments reduce rutting by 55% under ASTM D7870 testing. Modified binders also combat reflective cracking from underlying layers, extending service life to 20+ years. Thermal shrinkage rates drop below 50 microstrains, critical for bridge decks exposed to freeze-thaw cycles.

Beyond performance metrics, these asphalt composite systems open doors to smarter infrastructure. Next, let’s explore how these engineered materials transform roads, runways, and urban spaces.

Also See: Asphalt Durability for Commercial Projects

Applications Of Asphalt Composite Systems

Advanced asphalt composites solve tough problems in high-stress settings. Their mix of smart design and strong parts makes them fit for jobs where old-school asphalt fails.

High-performance Roadways and Highways

Busy roads need asphalt that won’t quit. Advanced composites use polymer-linked binders and steel fibers to handle over 10,000 cars per day. These pavements fight rutting at 140°F and cracks at -30°F, lasting 15+ years with half the fixes of basic asphalt.

Composite Asphalt Pavements for Bridges and Overpasses

Bridges shake, twist, and face wild temp swings. Elastomeric asphalt composites bend without breaking. Added steel mesh grids spread weight loads, cutting cracks by 60% on spans over 200 feet. Ohio’s I-90 bridge used this tech to skip deck repairs for 18 years.

Airport Runways and Taxiways

Jumbo jets demand pavements that won’t groove or crumble. Nano-modified asphalt mixes take 500+ tons of plane weight per pass. Runways built with these composites handle 30% more flights before resurfacing vs. standard tarmac.

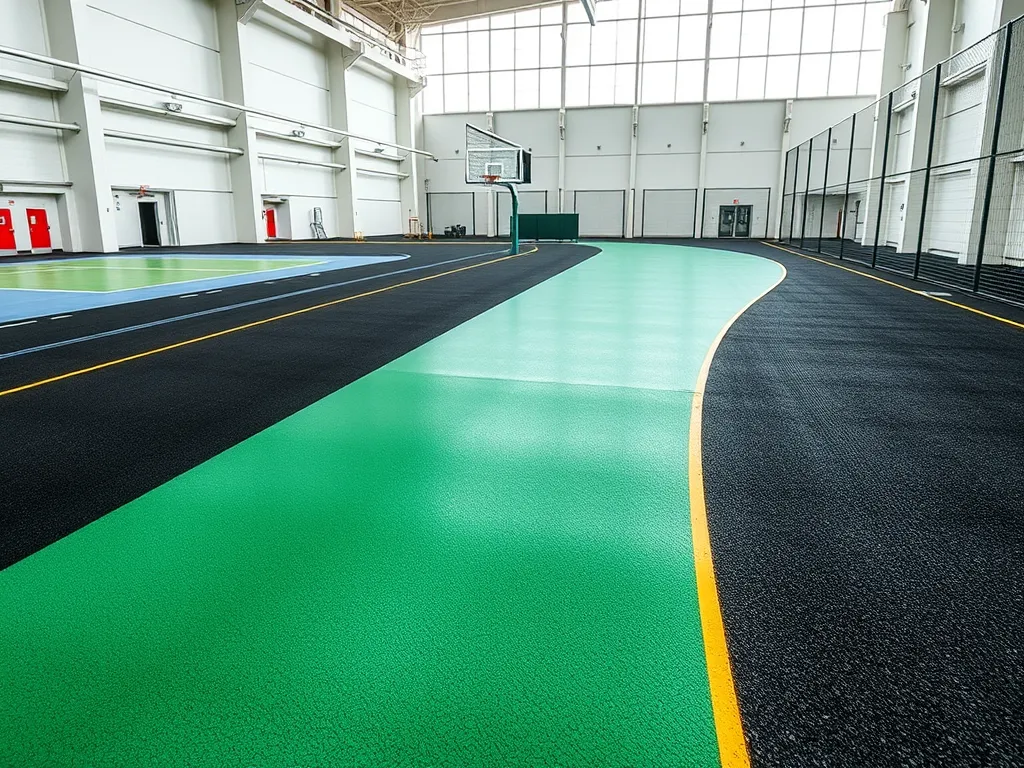

Industrial Flooring and Sports Facility Surfaces

Factory floors face forks, oils, and heavy gear. Fiber-reinforced composites shrug off impacts and spills. For sports, rubberized asphalt layers absorb shocks, cutting knee strain by 25%. The Miami Dolphins’ field uses this blend for safer plays in rain or heat.

See how these high-tech mixes beat old asphalt in head-to-head tests next.

Performance Comparison: Advanced Vs. Traditional Asphalt

Modern infrastructure demands push engineers to choose between traditional mixes and advanced asphalt composites. Let’s break down how these systems stack up in critical performance metrics.

Longevity and Maintenance Requirements

Traditional asphalt pavements typically survive 15-20 years before major rehabilitation. Advanced composite systems stretch this to 30-40 years through polymer-modified binders and fiber-reinforced structures. Rutting and raveling drop by 60% in high-traffic zones, slashing yearly upkeep costs from $3.50/sq.yd. to under $1.20. Self-healing elastomeric additives further minimize crack propagation, cutting patching frequency by half.

Environmental Stress Resistance

Where conventional mixes fail under -20°F or 150°F extremes, advanced elastic asphalt composites maintain structural integrity. Performance-graded (PG) binders rated PG 76-22 withstand thermal cracking at subzero temps while resisting rutting at scorching highs. Nanomaterials like graphene oxide boost UV resistance, reducing surface degradation rates by 45% compared to virgin asphalt. Freeze-thaw cycling tests show composite asphalt pavements retain 92% stiffness after 300 cycles versus 67% for standard mixes.

Cost-efficiency Over Lifecycle

While installation costs run 25-40% higher than traditional methods, advanced composites deliver 50-70% savings over 35 years. Reduced maintenance needs, extended resurfacng intervals (12-15 years vs. 7-10), and 30% lower repair volumes drive long-term value. Lifecycle cost modeling proves composite systems hit $0.18/vehicle-mile traveled versus $0.31 for conventional pavements on truck-heavy routes.

With these performance benchmarks set, the next frontier lies in balancing durability with ecological responsibility. Let’s explore how next-gen composites tackle sustainability without compromising strength.

Environmental and Sustainability Considerations

Advanced asphalt materials are rewriting the rules of eco-friendly construction. These composites tackle waste reduction and emissions head-on while boosting pavement performance.

Recycled Materials in Asphalt Composite Mixtures

Modern asphalt composite mixtures now integrate 30-40% recycled content. Recycled Asphalt Pavement (RAP) and Reclaimed Asphalt Shingles (RAS) replace virgin aggregates and binders. Polymer-modified mixes bind these materials tightly, maintaining structural integrity while cutting landfill waste by 2.5 million tons annually. Warm-mix asphalt technologies allow lower production temps (250-275°F vs 300-325°F), enabling higher recycled material use without compromising compaction.

State DOTs report 15-20% cost savings per lane mile when using high-RAP composites. Rubberized asphalt blends with 10-15% crumb tire rubber reduce tire stockpiles while adding crack resistance. These asphalt composite solutions meet AASHTO M 332 specs for Performance-Graded binders, proving sustainability doesn’t sacrifice quality.

Reduced Carbon Footprint Through Advanced Composites

Every ton of asphalt composite mix with 25% RAP slashes CO2 emissions by 18%. Nano-engineered additives like titanium dioxide or graphene oxide enable photocatalytic pavements that break down air pollutants – one mile of road cleans 45 cars’ daily NOx output. Bio-based binders from lignin or algae oil cut petroleum use by 30-50% in elastomeric asphalt composites.

Warm-mix asphalt composite systems shrink energy demands during production. A 50°F temperature drop per batch reduces fuel consumption by 1.2 gallons per ton. Carbon capture aggregates – minerals that permanently mineralize CO2 – are being tested in California’s I-710 project, aiming for carbon-negative pavements by 2026.

Asphalt composite innovations now balance immediate construction needs with long-term planetary impacts. The next challenge? Scaling these solutions while keeping budgets in check – a topic we’ll explore in cost analysis.

Cost Analysis and Longevity

Advanced asphalt composites deliver financial advantages that extend beyond surface-level savings. Let’s break down the numbers.

Initial Installation Costs Vs. Long-term Savings

Installing advanced composite asphalt systems costs 18-35% more than traditional mixes. Polymer-modified binders like PG 76-22 (performance-graded asphalt binders) add $8-$15 per ton. High-performance fibers such as carbon or glass fibers increase material costs by 12-20%. But these investments pay off:

• 30-50% longer lifespan: Composite pavements last 20+ years vs. 12-15 for standard asphalt
• 40% fewer cracks: Reduced need for patching and sealing
• Lower lifecycle costs: Save $3.50-$6 per square foot over 25 years

States like Texas and Michigan report 22% maintenance cost reductions on highways using elastomeric asphalt composites.

Factors Influencing Asphalt Composite Treatments Pricing

Six elements shape project budgets for asphalt composite systems:

1. Raw materials: Nano-clay additives ($45/lb) vs. recycled tire rubber ($0.30/lb)
2. Project scale: Large highway jobs cut per-unit costs by 15-18% through bulk purchasing
3. Traffic volume: High-load areas require thicker composite asphalt layers (8-14” vs. 4-6”)
4. Climate specs: Cold-region mixes need more modifiers, adding $4-$9 per ton
5. Labor expertise: Certified installers charge 25% more but reduce error rates by 60%
6. Tech integration: Smart compaction systems add $1,200/day but improve density by 6-8%

These financial patterns show how advanced composites balance upfront spending with multi-decade returns. Now let’s examine how material choices impact ecological outcomes.

Frequently Asked Questions (FAQs)

How Do Advanced Composites Improve Pavement Lifespan?

Advanced asphalt composites extend pavement lifespan significantly by integrating polymer modifiers and reinforcement materials, which enhance their ability to withstand stresses, temperature extremes, and heavy traffic loads. With these innovations, they can last 30-40 years compared to 15-20 years for traditional asphalt.

Are Composite Asphalt Solutions Suitable for Cold Climates?

Yes, composite asphalt solutions are engineered to perform well in cold climates. They incorporate performance-graded binders that prevent brittleness at low temperatures, allowing them to resist cracking and maintain flexibility even in extreme conditions.

What Are the Key Differences Between Advanced and Traditional Asphalt Components?

Advanced asphalt composites integrate higher quality binder materials, such as polymer modifiers, and use specialized reinforcement materials, like synthetic fibers or nanomaterials. In contrast, traditional asphalt primarily relies on aggregates and standard bitumen, lacking the enhancements for improved performance.

What Maintenance Requirements Are Typical for Asphalt Composites?

Asphalt composites typically require less maintenance than traditional asphalt due to their enhanced durability and resistance to cracking. This can result in maintenance costs being significantly lower, with reduced patching and sealing needs over the lifespan of the pavement.

Can Advanced Asphalt Composites Be Recycled?

Yes, advanced asphalt composites can incorporate a high percentage of recycled materials, which helps reduce environmental impacts. This includes using Recycled Asphalt Pavement (RAP) and Reclaimed Asphalt Shingles (RAS) to create new, high-performance asphalt mixes.

What Are the Environmental Benefits Of Using Advanced Asphalt Composites?

Advanced asphalt composites contribute to sustainability by utilizing recycled materials, reducing carbon emissions during production, and creating longer-lasting pavements that require fewer resources over time. Their ability to break down pollutants further enhances their eco-friendliness.

What Factors Affect the Cost Of Advanced Asphalt Composites?

Several factors influence the cost of advanced asphalt composites, including the raw materials used, project scale, traffic volume on the roads, climate considerations for material specifications, the expertise of installation labor, and the incorporation of advanced technology in the mixing and laying process.

Closing Thoughts

Advanced asphalt composites represent a significant leap in paving technology. Their ability to enhance durability and load-bearing capacity makes them ideal for high-performance applications—from highways to airport runways. With innovations like polymer modifiers, nanomaterials, and a focus on sustainability, these composites are paving the way for future infrastructure developments.

As you consider the benefits of utilizing advanced asphalt composites, remember that their long-term cost-efficiency and reduced environmental impact make them a smart investment. For anyone involved in construction or infrastructure planning, these solutions promise to deliver both performance and sustainability.
